U.S. Air Force Used Robots To Remove Paint From The A-10 Thunderbolt II

U.S. Air Force Used Robots To Remove Paint From The A-10 Thunderbolt II

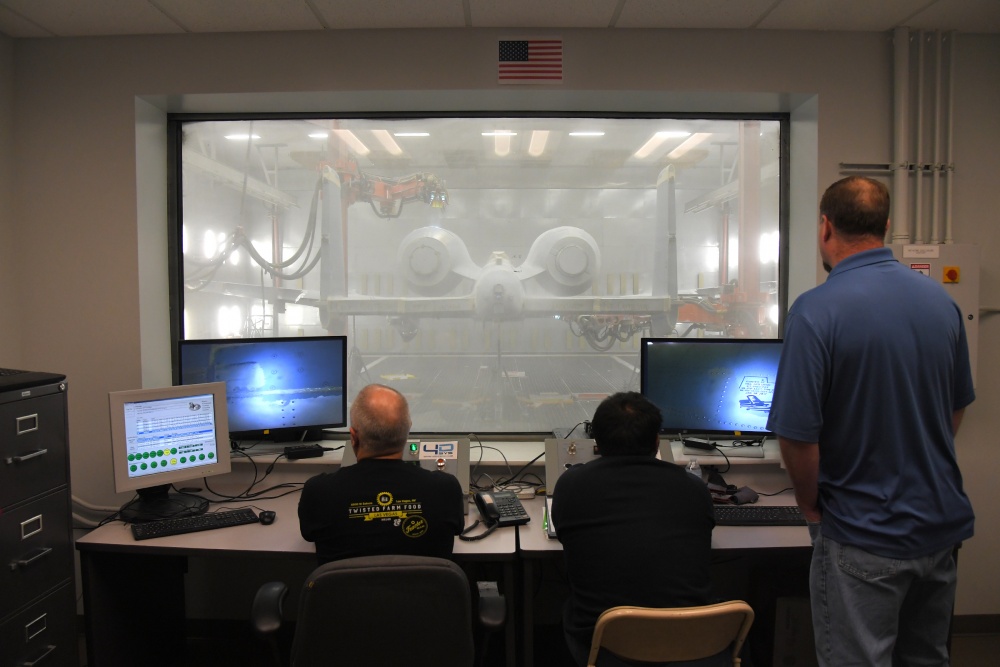

Corrosion control technicians with the 576th Aircraft Maintenance Squadron monitor two media blast robots as they strip paint off the first production A-10 aircraft to receive a new robotic removal process Dec. 4, 2019, at Hill Air Force Base, Utah. (U.S Air Force photo by Todd Cromar)

For the first time, the U.S. Air Force used 576th AMXS leverages robotic paint stripping technology on A-10 Thunderbolt II to remove paint from aircraft.

The 576th Aircraft Maintenance Squadron is upgrading its traditional manual media blast paint removal process by using new-generation robots to strip the paint from A-10s that come to the base for depot overhaul and maintenance.

All aircraft require regular exterior maintenance to protect their metal surfaces from corrosion due to moisture and the harsh environments in which they continually operate.

The process is expected to reduce man-hours it takes to strip paint from the aircraft, increase safety by removing employees from the blasting atmosphere, and result in measurable time and costs savings.

“There are going to be across-the-board improvements including a dramatic reduction in exposure to a Hexavalent Chromium dust environment. This is perhaps the greatest benefit to the robotic system,” said Tim Randolph, director for the 576th Aircraft Maintenance Squadron. “Savings will also be seen with reduced operating time and less power consumption, as well as reduced costs in the material. We really haven’t found a downside to this system.”

U.S. Air Force Used Robots To Remove Paint From The A-10 Thunderbolt II

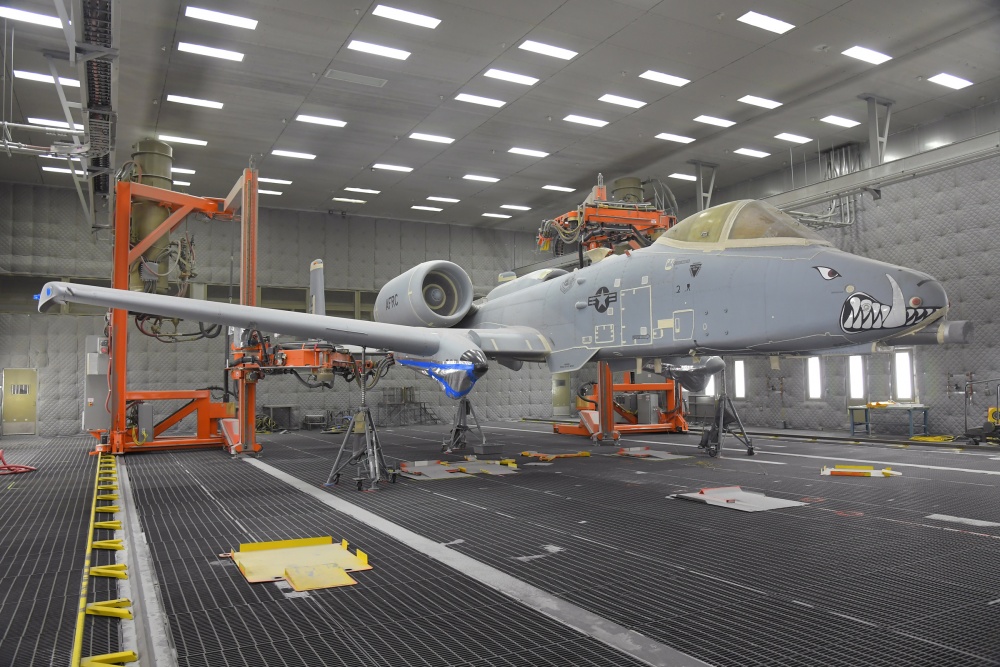

The 576th Aircraft Maintenance Squadron prepares the first production A-10 aircraft for paint removal using a new robotic media blast technology Dec. 4, 2019, at Hill Air Force Base, Utah. The aircraft is prepared by sealing up all seams and holes in the outer surface skin to prevent the blast media from entering the aircraft. (U.S Air Force photo by Todd Cromar)

James Gill, Corrosion Control Flight Chief for the 576th AMXS, said while the traditional manual media blast process is effective, it’s labor-intensive, requiring teams of workers at least three full days to complete.

The new paint removal process is accomplished by two robots, each with four hose attachments that move independently along both sides of the aircraft. In addition, the time to strip an A-10 is decreased from three days to 9-12 hours.

“Compared to the manual paint stripping method, the robots use half the amount of blast media at half of the air pressure, while removing an extremely precise thickness, uniformly, across the entire aircraft surface,” Gill said. “This translates into a process that is less stressful on the aircraft skins and saves money in media cost while creating only half the waste stream.”

In addition to the robotics process, a new laser burn process is currently being tested and used on F-16s with proven success. However, the squadron is still maturing the process and hopes to apply this process to the A-10s in the future.

By using new robotic technology, the squadron is expanding its capacity by adding capability.

Randolph said each of three processes has different capabilities and inherent limitations, but combined together, can reduce the total time an aircraft spends in depot maintenance and helps return it to the warfighter faster.
