The Lockheed Skunk Works (now Lockheed Martin) built the original SR-71 aircraft. Each aircraft is 107.4 feet long, has a wingspan of 55.6 feet, and is 18.5 feet high (from the ground to the top of the rudders, when parked). Gross takeoff weight is about 140,000 pounds, including a possible fuel weight of 80,280 pounds.
The SR-71 Blackbird would be a very short-ranged aircraft were it not for air refueling, limited to around 2,000 NM. Multiple air refuelings extended the range of the aircraft to the limits of crew endurance.
Many missions have exceeded 12,000 NM. Forward basing of the SR-71 and KC-135Q tankers permitted faster response, shorter range, shorter duration missions, fewer air refuelings, and greater overall efficiency.

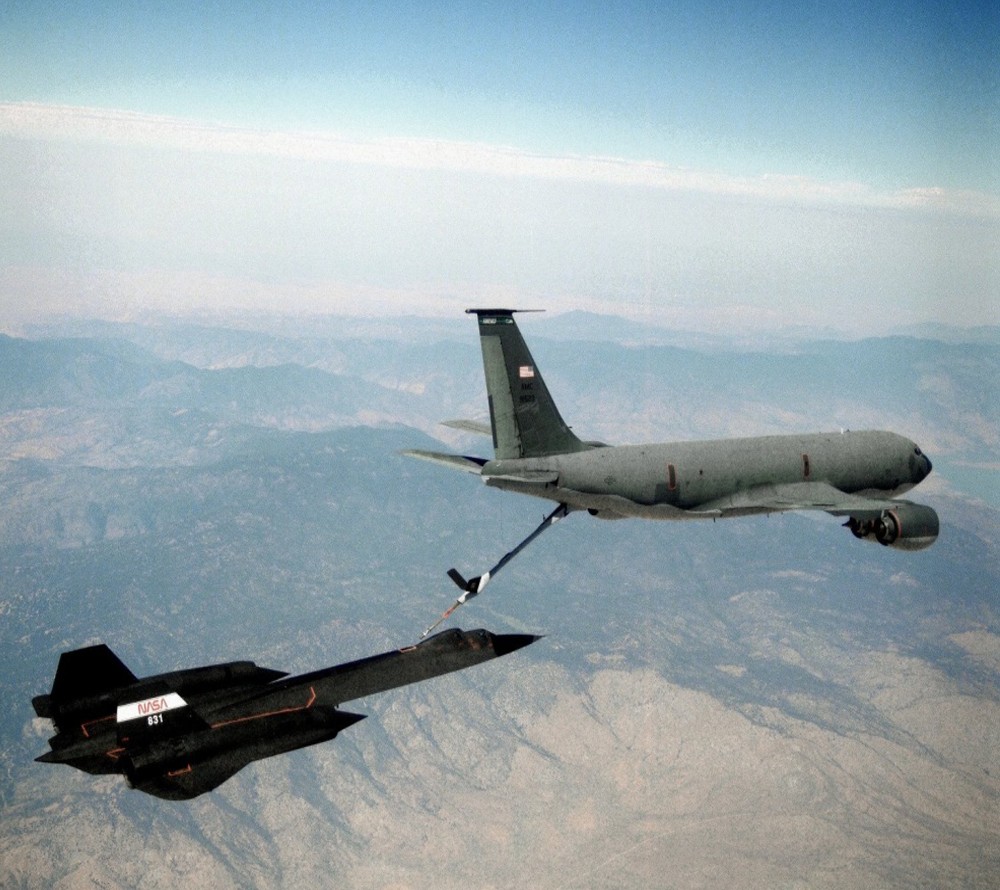

KC-135Q crews and their aircraft were unique from the rest of the Air Force in several ways. Their aircrews, in fact, we’re the only one certified in Blackbird’s specific radio-silent rendezvous procedures, and their boom operators were the only ones qualified to refuel the SR-71.
The Q-model tankers had special plumbing between their fuel tanks, allowing them to transfer JP-4 and JP-7 fuel between various tanks. Their engine could burn transfer JP-4 or JP-7 fuel. If the SR-71 landed somewhere JP-7 fuel was not available, the Q-model tankers flew in with the fuel and, through the use of transfer hoses on the ground, were able to refuel the SR-71
One of the best advantages of flying the Q-model tankers is that their crews did not have to be on a twenty-four-hour alert status like the rest of the SAC’s tankers’ crew members.
No story on the SR-71 would be complete without an understanding and appreciation of just how valuable the KC-135Q model tankers and their crews were to the successful and safe completion of every mission.
Col. Richard H. Graham a former Blackbird pilot, explains in his book why the SR-71 Blackbird had to refuel after takeoff.
Actually, most SR-71’s operational sorties started off with a refueling after takeoff.
“Many people believe we refueled after takeoff because the aircraft leaked fuel so profusely that we needed to fuel up quickly,” says Col. Richard H. Graham, a former Blackbird pilot, in his book SR-71 The Complete Illustrated History of THE BLACKBIRD The World’s Highest, Fastest Plane.
“We had to refuel right after takeoff for only one reason, and it wasn’t because we leaked JP-7 fuel on the ground. Yes, the plane does leak fuel, but not enough to require refueling after takeoff.
“The JP-7 fuel reaches temperatures well over 300 degrees F. during Mach 3 cruise, making the fumes in each of the six fuel tanks very volatile and potentially explosive.
The metal skin of the aircraft approaches 400 degrees F., adding to the volatility of the fuel inside the tanks. One of our aircraft limitations was a maximum speed of Mach 2.6 without an inert atmosphere inside the fuel tanks.
“The aircraft had three liquid nitrogen Dewar flasks containing 260 liters of liquid nitrogen, located in the nose wheel well. The only way to ensure a 100 percent inert atmosphere in each fuel tank was to refuel the plane inflight completely full of JP-7, allowing ambient air in each fuel tank to vent overboard. Once full of fuel, gaseous nitrogen would now dominate each fuel tank’s empty space above as it burned off JP-7. The nitrogen gas pressurized each fuel tank to 1.5 psi above ambient pressure and inerts the space above the heated fuel to prevent autogenous ignition. This is why we refueled after takeoff. Then we could safely accelerate beyond Mach 2.6.”
Graham concludes:
“There was one other way of achieving tank inerting, called a “Yo-Yo,” but this was a maintenance nightmare. A few of our missions required the SR-71 to accelerate to Mach 3+ right after takeoff with a 65,000-pound fuel load. The Yo-Yo procedure had the crew chief completely refuel the plane to full tanks of 80,000 pounds of fuel. Then, with the nitrogen pressurization system working, they de-fueled 15,000 pounds of JP-7, ending up with a 65,000 pound fuel load and a plane that was capable of going immediately to Mach 3+.”
