McDonnell Douglas/Boeing X-36 Tailless Fighter Agility Research Aircraft

McDonnell Douglas/Boeing X-36 Tailless Fighter Agility Research Aircraft

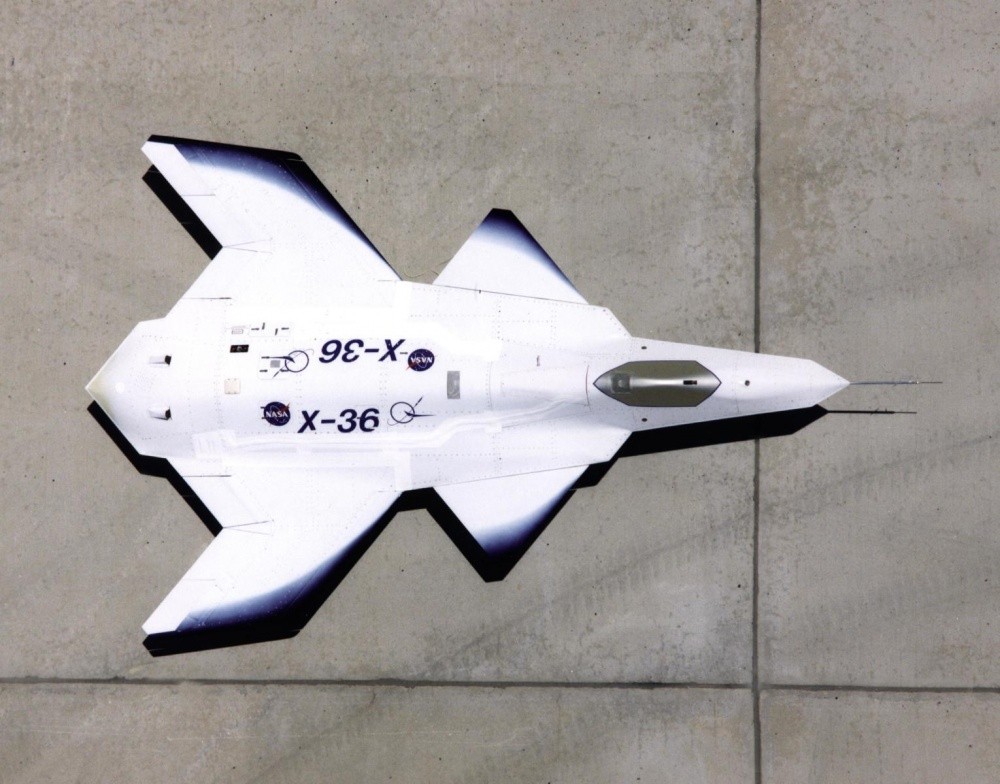

The McDonnell Douglas later Boeing X-36 Tailless Fighter Agility Research Aircraft was an American stealthy subscale prototype jet designed to fly without the traditional tail assembly found on most aircraft.

This configuration was designed to reduce weight, drag and radar cross-section, but increase range, maneuverability, and survivability

The X-36 was built to a 28% scale of a possible fighter aircraft and was controlled by a pilot in a ground-based virtual cockpit with a view provided by a video camera mounted in the canopy of the aircraft.

McDonnell Douglas/Boeing X-36 Tailless Fighter Agility Research Aircraft

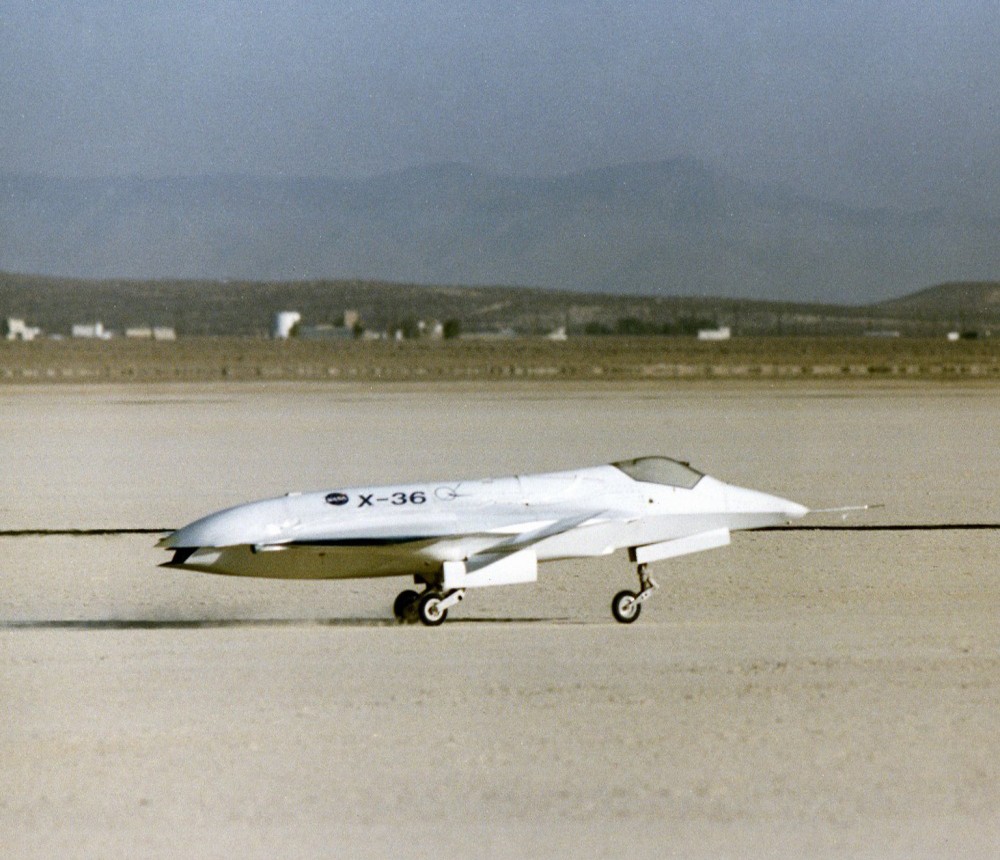

In the Above photo NASA/McDonnell Douglas Corporation (MDC) X-36 Tailless Fighter Agility Research Aircraft undergoes high-speed taxi tests on Rogers Dry Lake at NASA Dryden Flight Research Center, Edwards, California, on October 17, 1996.

The aircraft was tested at speeds up to 85 knots. Normal takeoff speed would be 110 knots. More taxi and radio frequency tests were slated before it’s first flight would be made.

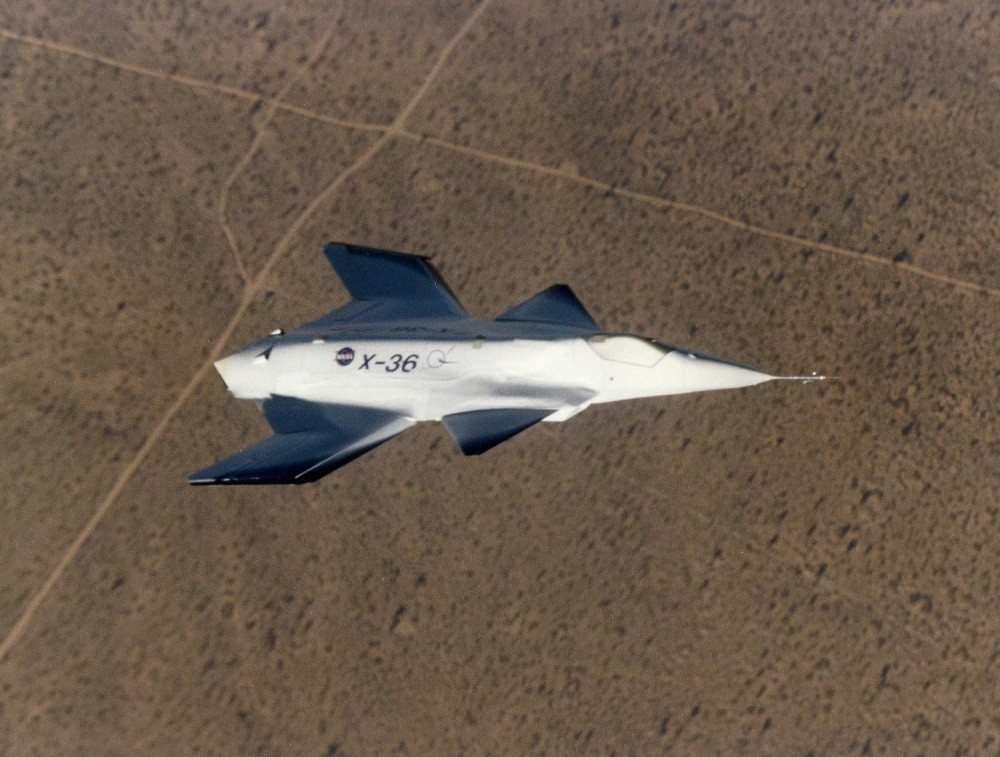

The aircraft’s speed envelope reached up to 206 knots (234 mph). This aircraft was very stable and maneuverable. It handled very well. The X-36 vehicle was designed to fly without the traditional tail surfaces common on most aircraft.

Instead, a canard forward of the wing was used as well as split ailerons and an advanced thrust-vectoring nozzle for directional control. The X-36 was unstable in both pitch and yaw axes, so an advanced, single-channel digital fly-by-wire control system (developed with some commercially available components) was put in place to stabilize the aircraft.

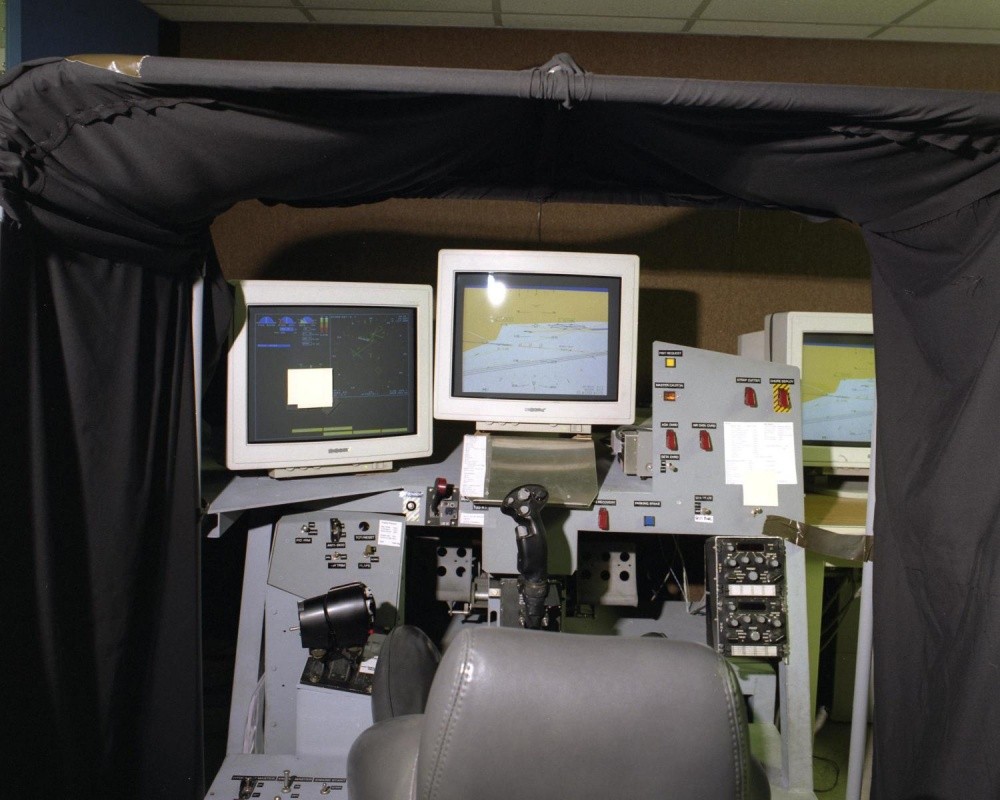

Using a video camera mounted in the nose of the aircraft and an onboard microphone, the X-36 was remotely controlled by a pilot in a ground station virtual cockpit. A standard fighter-type head-up display (HUD) and a moving-map representation of the vehicle’s position within the range in which it flew provided excellent situational awareness for the pilot.

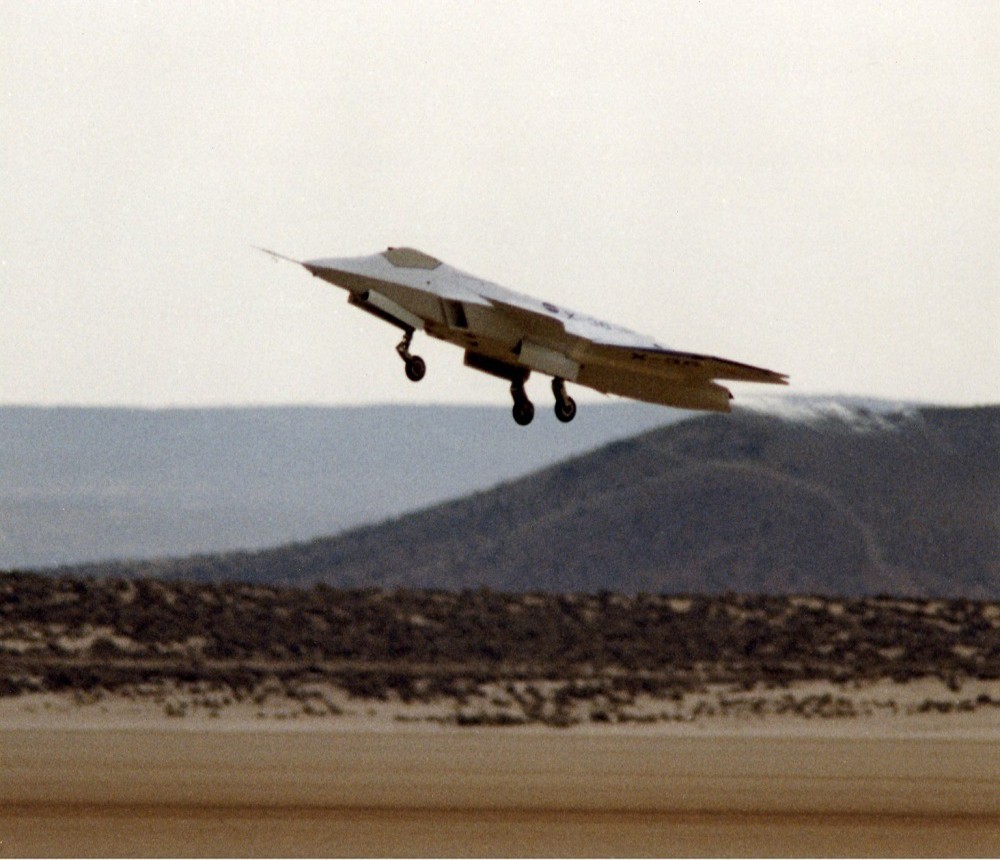

X-36 Taking off during First Flight
X-36 Taking off during First Flight

This pilot-in-the-loop approach eliminated the need for expensive and complex autonomous flight control systems and the risks associated with their inability to deal with unknown or unforeseen phenomena in flight. Fully fueled the X-36 prototype weighed approximately 1,250 pounds. It was 19 feet long and three feet high with a wingspan of just over 10 feet.

A Williams International F112 turbofan engine provided close to 700 pounds of thrust. A typical research flight lasted 35 to 45 minutes from takeoff to touchdown. A total of 31 successful research flights were flown from May 17, 1997, to November 12, 1997, amassing 15 hours and 38 minutes of flight time.

The aircraft reached an altitude of 20,200 feet and a maximum angle of attack of 40 degrees. In a follow-on effort, the Air Force Research Laboratory (AFRL), Wright-Patterson Air Force Base, Ohio, contracted with Boeing to fly AFRL’s Reconfigurable Control for Tailless Fighter Aircraft (RESTORE) software as a demonstration of the adaptability of the neural-net algorithm to compensate for in-flight damage or malfunction of effectors, such as flaps, ailerons and rudders. Two RESTORE research flights were flown in December 1998, proving the viability of the software approach.

The X-36 aircraft flown at the Dryden Flight Research Center in 1997 was a 28-percent scale representation of a theoretical advanced fighter aircraft. The Boeing Phantom Works (formerly McDonnell Douglas) in St. Louis, Missouri, built two of the vehicles in a cooperative agreement with the Ames Research Center, Moffett Field, California.

McDonnell Douglas/Boeing X-36 Tailless Fighter Agility Research Aircraft



Project Summary

The NASA/Boeing X-36 Tailless Fighter Agility Research Aircraft successfully completed a 31-flight research program at NASA Dryden Flight Research Center, Edwards, CA, in November 1997. The X-36 project team developed and demonstrated the tailless fighter design using advanced technologies to improve the maneuverability and survivability of possible future fighter aircraft. The X-36 program met or exceeded all project goals.

In a follow-on effort, the Air Force Research Lab (AFRL) contracted Boeing to fly AFRL’s Reconfigurable Control for Tailless Fighter Aircraft (RESTORE) software as a demonstration of the adaptability of the neural-net algorithm to compensate for in-flight damage or malfunction of effectors, i.e., flaps, ailerons and rudders. Two RESTORE research flights were flown in December 1998, proving the viability of the software approach.

McDonnell Douglas/Boeing X-36 Tailless Fighter Agility Research Aircraft

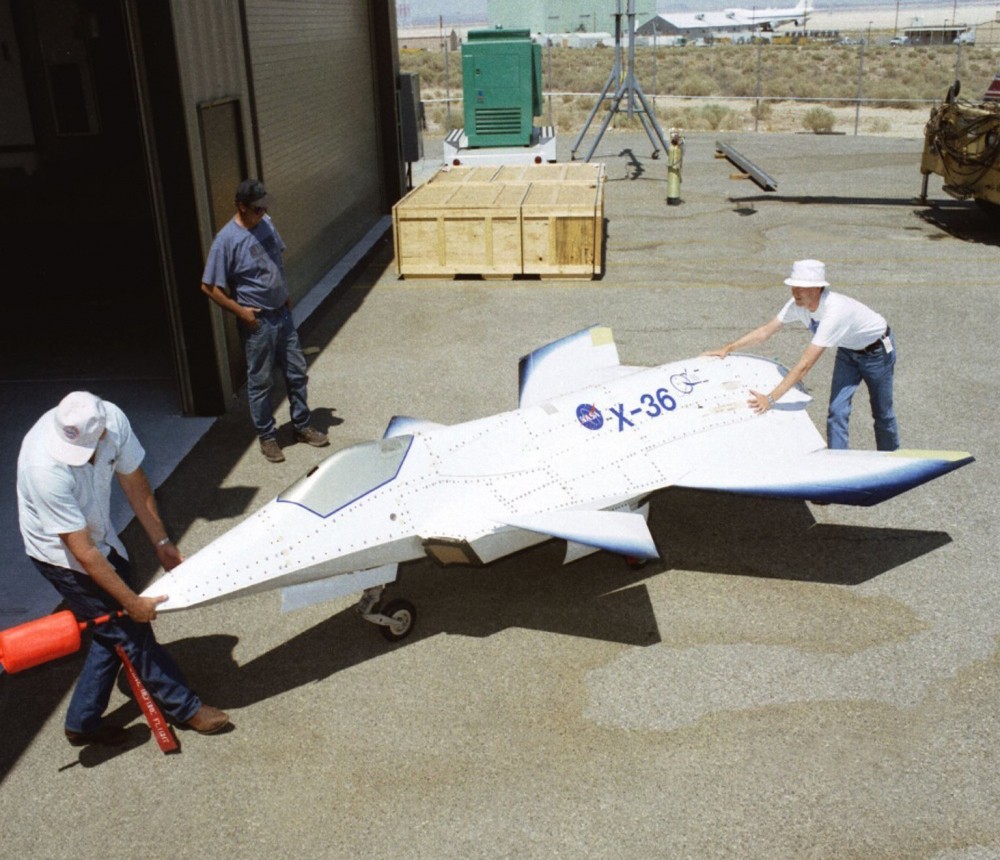

X-36 Tailless Fighter Agility Research Aircraft arrival at Dryden

Accomplishments

The first flight of the X-36 occurred on May 17, 1997, with the final flight closing the original program on Nov. 12, 1997. A total of 31 safe and successful research flights were flown during that 25-week period, accumulating a total of 15 hours and 38 minutes of flight time and using four different versions of flight control software. The aircraft reached an altitude of 20,200 feet and a maximum angle of attack of 40 degrees.

The X-36 project team examined the aircraft’s agility at low speed/high angles of attack and at high speed/low angles of attack. The X-36’s speed envelope reached up to 206 knots (234 miles per hour); the aircraft was very stable and maneuverable and handled very well at both ends of the speed envelope.

For the follow-on RESTORE program, two flights were flown with the adaptive neural-net software running in conjunction with the original proven control laws. Several in-flight simulated failures of control surfaces were introduced as a problem for the reconfigurable control algorithm. Each time, the software correctly compensated for the failure and allowed the aircraft to be safely flown in spite of the degraded condition.

X-36 Tailless Fighter Agility Research Aircraft arrival at DrydenX-36 Tailless Fighter Agility Research Aircraft arrival at Dryden

Technical Specifications

The X-36 is a 28-percent scale representation of a theoretical advanced fighter aircraft configuration. The Boeing Phantom Works (formerly McDonnell-Douglas) in St. Louis, MO, built the X-36, in a cooperative agreement with NASA Ames Research Center, Moffett Field, CA. It was designed to fly without the traditional tail surfaces common on most aircraft. Instead, a canard forward of the wing is utilized, in addition to split ailerons and an advanced thrust-vectoring nozzle for directional control. The X-36 is unstable in both the pitch and yaw axes; therefore, an advanced, single-channel digital fly-by-wire control system, developed with some commercially available components, stabilizes the aircraft.

Fully fueled, the X-36 prototype weighs about 1,250 pounds. It is 19 feet long and three feet high with a wingspan of just over 10 feet. A Williams International F112 turbofan engine provides about 700 pounds of thrust. A typical research flight lasts approximately 35 to 45 minutes from takeoff to touchdown.

Using a video camera mounted in the nose of the vehicle (and an on-board microphone), the X-36 is remotely-controlled by a pilot in a ground station virtual cockpit. A standard fighter-type head-up display (HUD), in addition to a moving-map representation of the vehicle’s position within the range, provides excellent situational awareness for the pilot. This pilot-in-the-loop approach eliminates the need for expensive and complex autonomous flight control systems and the risks associated with their inability to deal with unknown or unforeseen phenomena once in flight.

Teamwork

The X-36 project team, consisting of employees from Boeing, and NASA’s Ames and Dryden Research Centers. The project was an unparalleled accomplishment for a remotely-piloted aircraft program.

Ames and the Phantom Works developed the technologies required for tailless agile flight beginning in 1989. Based on positive results of extensive wind tunnel testing and computational fluid dynamics (CFD) analysis, McDonnell-Douglas in 1993 proposed building the remotely-piloted scale aircraft technology demonstrator to validate the advanced technologies in a real flight environment.

In 1994, the Phantom Works began fabrication of the two X-36 vehicles using rapid prototyping techniques in its St. Louis facility. NASA and Boeing were full partners in the project, which was jointly funded under a roughly 50/50 cost-sharing arrangement. The combined program cost for the development, fabrication, and flight testing of the two prototype aircraft was approximately $21 million. Ames led the X-36 program providing government oversight. In the flight test phase, Dryden provided the flight test experience, infrastructure and range support.

Funding

The X-36 Program received its funding from NASA’s Office of Aero-Space Technology (OAT) in Washington, DC, and from The Boeing Company.

Photo Credits: NASA Via dvidshub and nasa.gov
