China is past master at reverse engineering Western and Russian Defence Systems. Be it Russian fighter jets, missile technology from Ukraine, Radars from Israel’s Elta or its newly brandished 5th Generation Fighter Jets that borrow from US Aircrafts, Chinese engineers attempt it all.

One of the most successful exports of Chinese Defence establishment is JF-17 Thunder multirole fighter that it designed for Pakistan. While it was designed from the outset to be an export fighter, its road to service was very rocky, involving decades of development and even American involvement at some points.

Design of Thunder is an amalgamation of the MiG-21 and the F-16 Fighting Falcon. The most recent blocks of the JF-17 have introduced advanced capabilities that as per claims. But the nagging question is how exactly did the United States and China – two arch enemies-contributed to the development of JF-17? Does the ancient airframe hold it back, or can it be worked around?

The JF-17 evolved out of a series of projects to produce an upgrade for the Pakistani Air Force’s fleet of Chengdu Aircraft Corporation (CAC) J-7 fighters.

As Pakistan was one of the primary lynchpins in U.S.’ scheme of things to aid the anti-Soviet Afghan Mujaheddin, the United States was willing to help Pakistan in certain defense sectors. As the Soviets were preparing to field their next generation lightweight fighter; the MiG-29, Pakistan wanted an aircraft that could counter it.

This resulted in Project Sabre II , an attempt to modernize the J-7s conducted by CAC and Grumman. The original iteration of Sabre II only stretched the fuselage of the J-7, redesigned the control surfaces, and changed the location and size of the air intakes. However the Sabre II was unable to reach the performance of contemporary American fighters or the projected performance of the MiG-29 with this configuration, so Project Sabre II was sidelined.

The three countries i.e. USA, China and Pakistan then decided to have another go at it later in the 1980s, resulting in the “Super 7” project. This time the wingspan was increased and formed into a similar configuration to the F-16 in addition to the prior aerodynamic changes. Grumman pulled out of the Super 7 project in 1989 due to Tiananmen Square Massacre and the resulting anger of the democratic West with Communist China. The project remained under uncertainty for around 10 years as negotiations between China and Pakistan continued. A feasibility study to see if future development would be fruitful was commissioned in 1992, it was successful so a memorandum to continue development was signed.

In 1998 China and Pakistan restarted serious development of the Super 7. Costs were divided equally between the Pakistani government and CAC and the aircraft was renamed JF-17. As Grumman had dropped out of the project, the fighter needed a new engine.

A solution was found in the Russian Mikoyan design bureau, which offered the Klimov RD-93 engine which was originally designed for the canceled MiG-33 fighter jet. The RD-93 was an advanced version of the RD-33 used on the MiG-29, however, only one RD-93 is used on the JF-17 in contrast to two RD-33s in a MiG-29.

Another key innovation that occurred during the development process was the inclusion of diverterless supersonic intakes (DSI) on the JF-17 design. The design went through several iterations but is seen on current JF-17 production aircraft. In 2003 the first prototype took to the air. By 2006 the JF-17 was finalized and ready to enter serial production. It was formally adopted in 2007. The first fully Pakistani-manufactured JF-17 was created in 2008.

The JF-17’s designers have proven adept at keeping up with the times following its entry into service. The initial run of fighters for Pakistan have been referred to as Block I JF-17s.

Block II JF-17s introduced a multitude of new capabilities and upgrades, including composites in the airframe for reduced weight, air to air refueling, a full fly-by-wire system, and a better radar. China offered to replace the Russian RD-93s with their own WS-13 in Block II JF-17s, but Pakistan opted to stick with the Russian engine .

For the Block III, China hopes to add an AESA radar to the JF-17 and further improve the avionics and weapons compatibility of the JF-17. The reports appeared recently that China has built a radar similar to Elta’s EL/M-2052. Meanwhile, the standard JF-17 features the MIL-STD-1760 databus in some implementations, allowing for compatibility with Western and Eastern weapons.

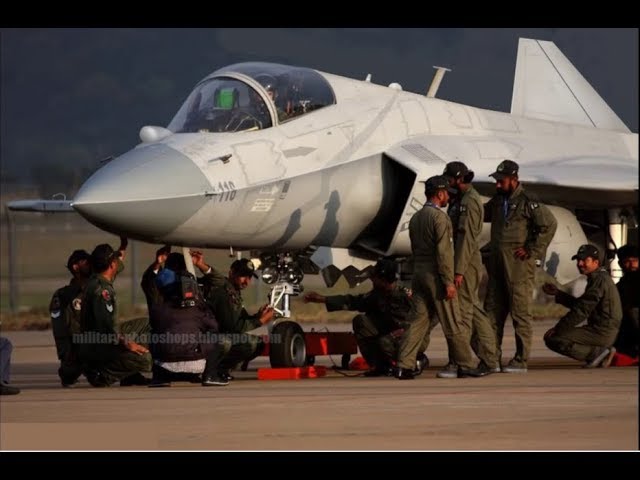

JF17 thunder Block 3 Major Changes

One potential weakness of the JF-17 is its internal cannon, which is still the double-barrel GSh-23, a legacy of its MiG-21 heritage. This cannon is outperformed by practically any other autocannon mounted on a modern combat aircraft. However, given the relative infrequency of cannon usage in modern air combat, this is not a big issue.

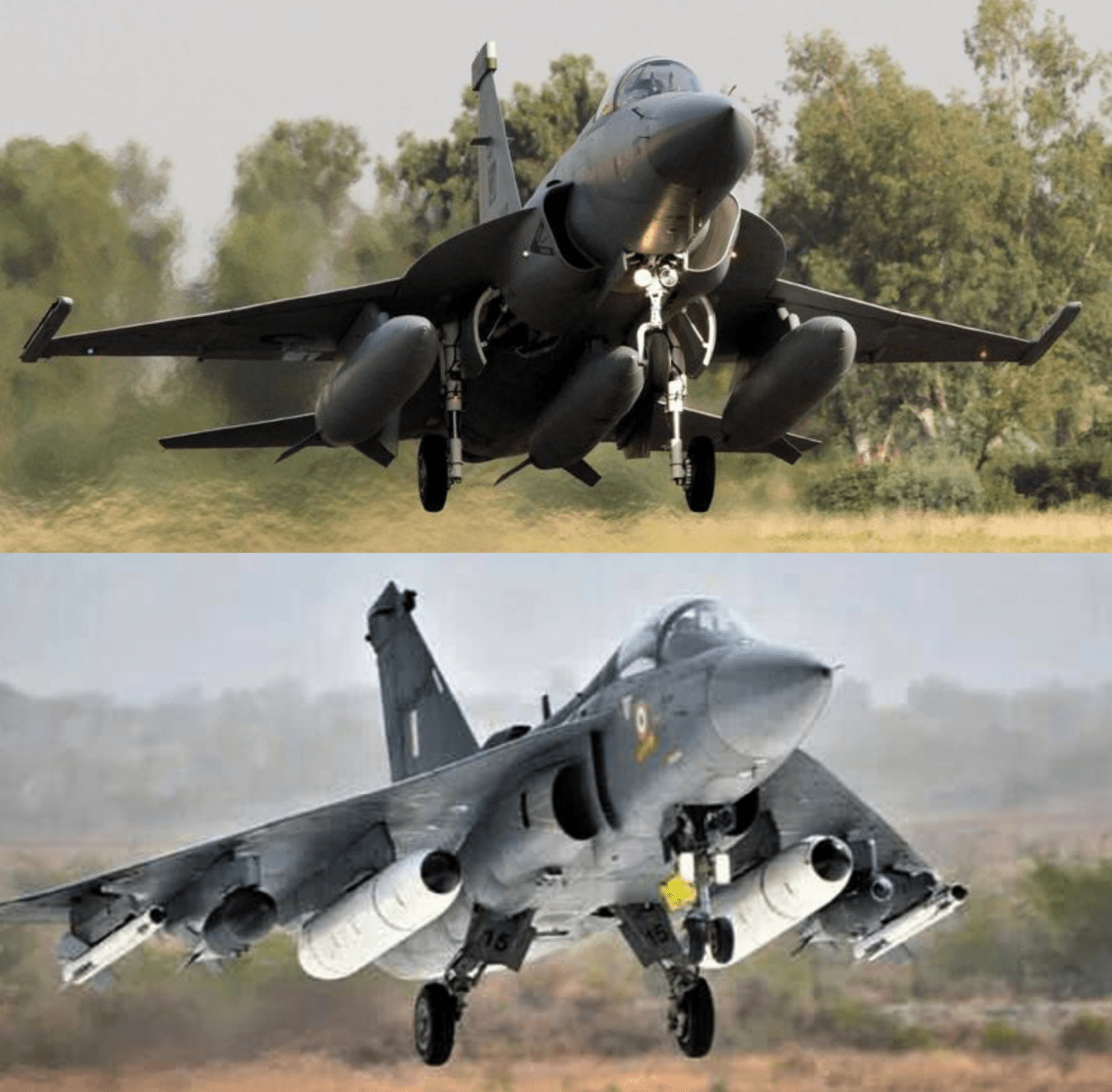

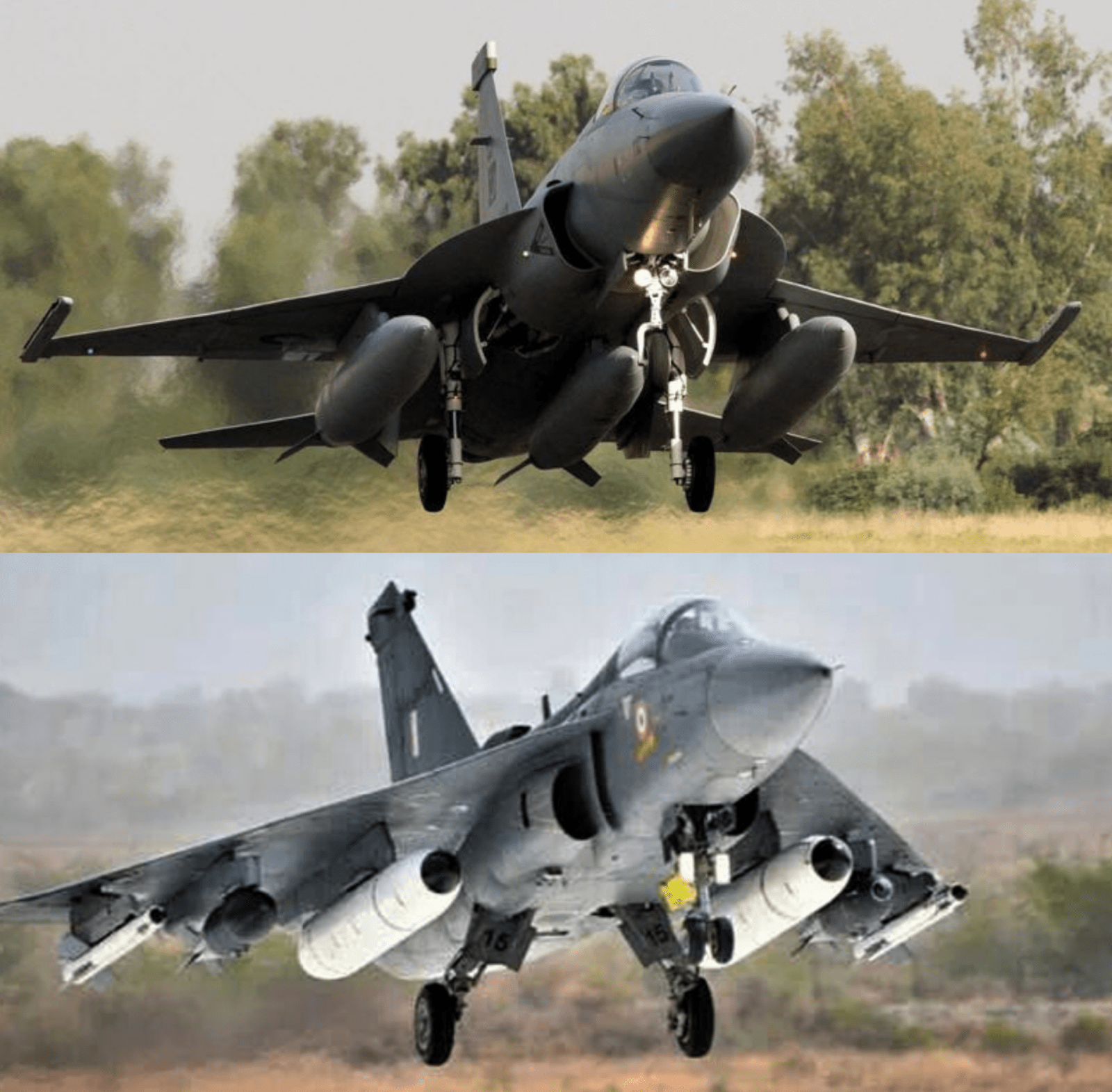

INDIA HAL Tejas vs PAKISTAN JF-17 Thunder
